IBM Watson Assistant Input Action

This action will parse any user text through IBM Watson Assistant engine. The conversation will hold until the user correctly reply to the configured intent or it is skipped using another intent or simple text.

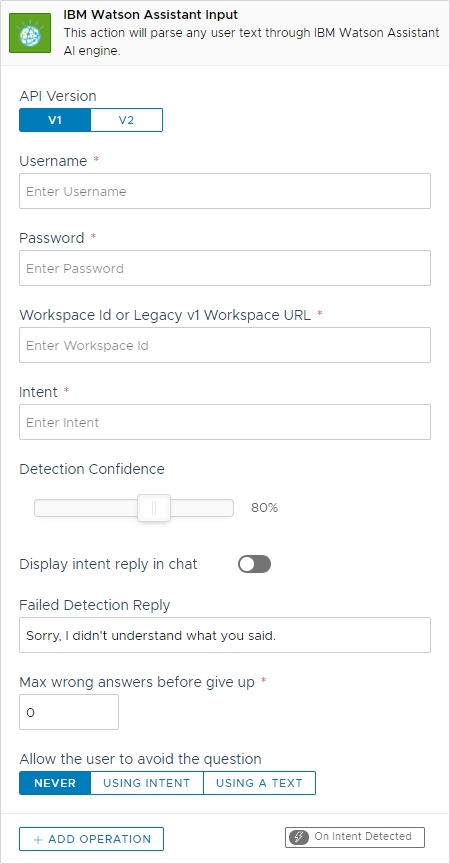

Settings

The action uses the following settings:

Setting

Description

API Version

Select the version of the IBM Watson API

Username

The IBM Watson integration username

Password

The IBM Watson integration password

Workspace Id or Workspace Url

Set here the full workspace id or the full workspace url of your IBM Watson assistant API integration

Intent

The full name of the intent you want to be parsed. Use asterisk (*) to accept any intent

Detection Confidence

The minimum confidence required to trigger this action

Display intent reply in chat

If enabled, MyLINK Connect will display a message bubble with the text you've specified as possible intent reply on IBM Watson.

Failed Detection Reply

This is the text that will be displayed if the user input does not match the intent expressions.

Max Wrong Answers

The maximum number of wrong inputs the user can send before the question is skipped. Set to 0 (zero) to never give up on wrong inputs.

Control Expression

A simple text or full Regular Expression match string

Never Skip Question

The question cannot be skipped by user. The input will repeat indefinitely until the control expression is matched or the maximum number of wrong inputs is reached

Intent Skip Question

The user can skip the question if his reply matches a specific intent

Text Skip Question

The user can skip the question if his reply matches a specific text or Regular Expression

Remarks

This action is halting the conversation. The chatbot is halted at the input point and will not proceed unless the conditions specified in the settings are met.

This action is optimized to use IBM Watson API only once per user input. Even using multiple IBM Watson Detection actions will result in a single API call. Every IBM Watson AP call will count as an additional chatbot message.

Any integration issue that MyLINK Connect encounters during IBM Watson API calls can be found inside each conversation Execution Diagram or inside the chatbot preview Execution Diagram.

If required, instead of the standard Workspace Id, the Legacy v1 Workspace URL can be found the API Details page you can see in the following picture:

Trigger

On Intent Detected. This action will trigger any child operation as soon as the user input is matching the selected intent with at least the specified confidence.

Variables

This action produces the following variables after being triggered:

Variable

Description

wat_detected_intent

The intent detected during last input

wat_reply

The intent reply received by Dialogflow

Every entity specified in the detected expression will be translated to a runtime variable named after the entity name.

Availability

Channel specific availability follows the table below:

Channel

Availability

Facebook

Fully Available.

WhatsApp

Fully Available.

Telegram

Fully Available.

Web

Fully Available.

Alexa

Fully Available.

Google Assistant

Fully Available.

Slack

Fully Available.

API

Fully Available.

This action can be used only at Bot Global level or Behavior level.
