Card Container Action
Last updated
Last updated
This operation will add a new card in a carousel template. Each card can have text, an image, multiple buttons and a default URL.

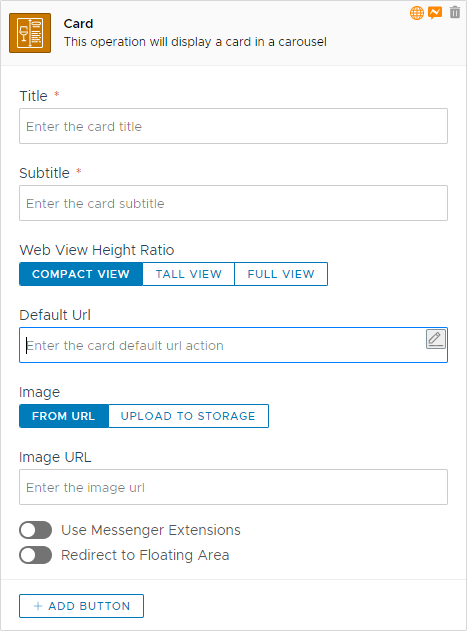

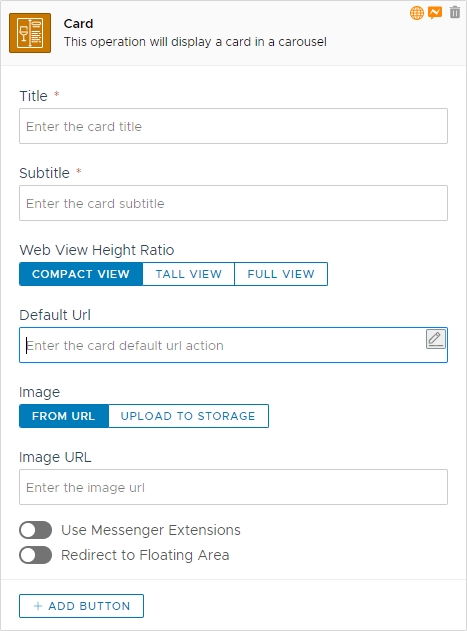

The action uses the following settings:
Setting | Description | |
Title | The title of the card. | |
Subtitle | The subtitle of the card. | |
Web View Height Ratio | These options change the height of the Web View used to display web content when using an Url Button. This is a Facebook specific setting. | |
Default Url | The default Url that will be opened by the card when clicked | |
Image Source | The Url or Connect storage source of the card main image. External image Urls need to be served through HTTPS protocol. | |
Use Messenger Extensions | Enables the Facebook messenger extension feature. When enabled the Default Url value must be part of the whitelisted domains. | |
Redirect To Floating Area | If enabled and supported, the link will be displayed inside the channel floating area. Currently only Web Channel supports the floating area. |
Not all channels can natively display carousels. Connect will resort to alternate rendering methods if the selected channel does not support carousels natively.
When used on a touch enabled device, carousel cards can be scrolled using a simple swipe gesture.
When using a single or carouse card on RCS, Connect will assign the media height based on the View Height Ratio value, following the table below:
| Height Ratio | Media Height |
|---|---|
COMPACT | SHORT_HEIGHT |
TALL | TALL_HEIGHT |
FULL | MEDIUM_HEIGHT |
This action has no triggers.
This action does not produce any variable.
Channel specific availability follows the table below:
Channel | Availability |
Fully Available. | |
Fully Available. | |
Telegram | Fully Available. |
Web | Fully Available. |
Alexa | Fully Available. |
Google Assistant | Fully Available. |
Slack | Fully Available. |
API | Fully Available. |
This action can be used only inside interactions and not as child of other actions. Any account can use this action regardless of subscription level.
